Alcatel KR01 aka CRYSTAL Unlocked Done

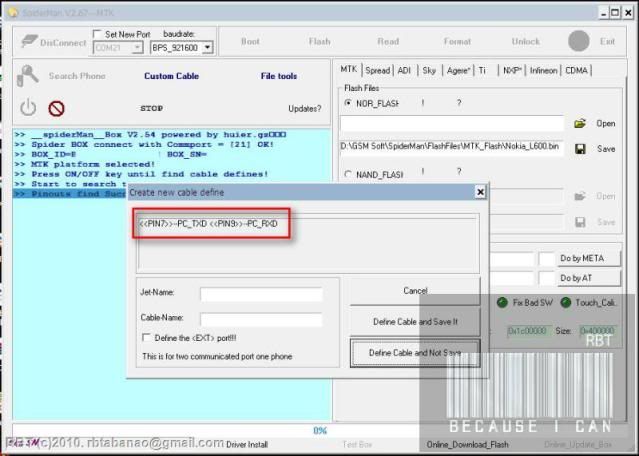

First timeAlcatel KR01 aka Crystal unlocked smoothly with Spiderman/Infinity CombiConnect muna unit sa Spiderman and autodetect pinout...
open Infinity shell and select Alcatel KR01/Crystal

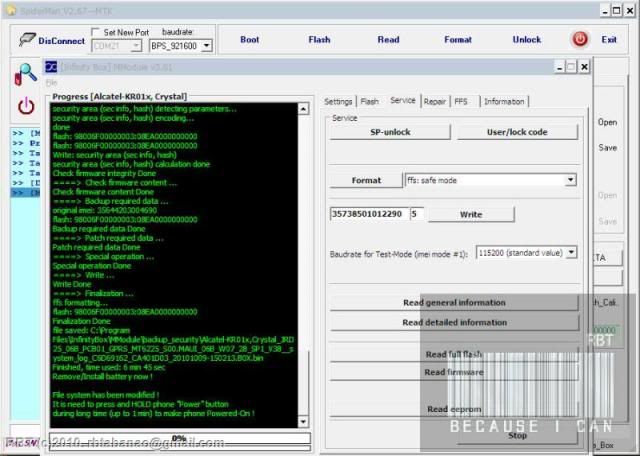

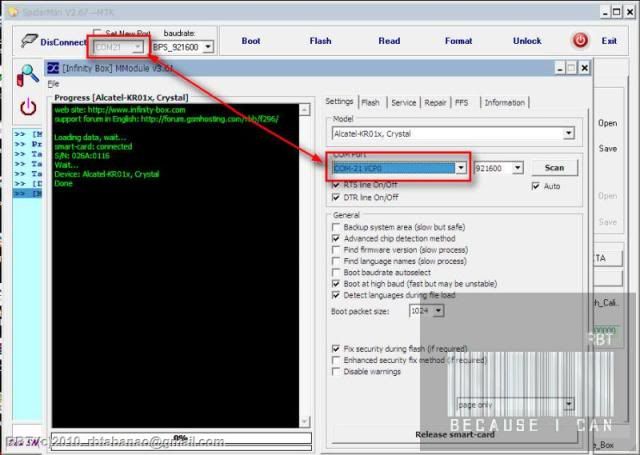

be sure na yung COM port mo sa Infinity same din sa COM ng Spidermanclick SERVICE TAB then SP-unlock...then follow screen instruction..
LOG:
COM21 [VCP0] selected
module v3.61
Device: Alcatel-KR01x, Crystal
Checking data, wait...
advanced flash detection enabled
Action: rebuild security area
====> Boot ...
Press and HOLD Power button now !
19200 fixed
Connecting, wait...
Initializing [6225:8A05:8A00]...
CPU: MT6225
chip: 0001:8D03:A00B
status: 01
boot packet size: 0400
Release Power button now !
Boot Done
====> Initialize ...
detecting chip #00 in region #00...
flash: 98006F00000003:08EA0000000000
flash: AMD/Fujitsu std [T 0008x004000 00FFx020000] 32Mb
otp offset: 01FE0000
number of flash chip/regions detected: 01/01
Initialize Done
====> Set baud ...
921600
Set baud Done
====> Initialize bootcode ...
Initialize bootcode Done
====> Check firmware integrity ...
usb bootloader detect...
usb bootloader (chip) is present: 00020000
searching rom info...
search rom info finished
rom info structure: [protected] type (05), 1 record(s)
TCL-ID is present
startup code area #1 is Ok
startup code area #1 backup saved: C:\Program Files\InfinityBox\MModule\backup_security\id.C6D69 162.[JRD25_06B_PCB01_GPRS_MT6225_S00.MAUI_06B_W07_28_SP 1_V38.BIN_CA401D03].rpl
rom info detection finished
TCL-ID detection...
TCL-ID detection done
device-id: C6D69162
rom info ver: 05
sw version: JRD25_06B_PCB01_GPRS_MT6225_S00.MAUI_06B_W07_28_SP 1_V38.BIN
project-id: MAUI.06B.W07.28.SP1.V38, 031D40CA
code offset: 00020000
ffs offset/size [01]: 01000000/00FE0000
TCL-ID identification
version: 352
provider: KR01X-2BTWGB1
customization: CJ35DL18
customization: XJ35DL18
TCL-ID identification done
rom info structure: [protected] type (05), 1 record(s)
TCL-ID is present
ffs/eeprom address assigned: 01000000
startup code area #1 check...
startup code area #1 fixed
sec info (detailed) detection...
searching sec info#1...
search sec info#1 finished
product id: JRD_COMMUNICATION_B82X_PRODUCTS
area1 is invalid
area2 is invalid
area3 is valid
area4 is invalid
searching sec info#2...
search sec info#2 finished
sim-lock status: enabled
product id: JRD_COMMUNICATION_B82X_PRODUCTS
area1 is valid
area2 is valid
area3 is valid
area4 is invalid
searching sec info#3...
search sec info#3 finished
sim-lock status: enabled
product id: JRD_COMMUNICATION_B82X_PRODUCTS
area1 is valid
area2 is valid
area3 is valid
area4 is valid
number of sec info areas: 3
security area (sec info, cust) calculation...
error: security area (sec info, cust) header is invalid
security area (sec info, hash) calculation...
..................security area (sec info, hash) detecting size...
security area (sec info, hash) detecting parameters...
security area (sec info, hash) encoding...
done
flash: 98006F00000003:08EA0000000000
flash: 98006F00000003:08EA0000000000
Write: security area (sec info, hash)
security area (sec info, hash) calculation done
security area (sec info, cust) calculation...
identification header detected
customization: XJ35DL18
customization name adjusted
flash: 98006F00000003:08EA0000000000
flash: 98006F00000003:08EA0000000000
Write: security area (sec info, cust)
security area (sec info, cust) calculation done
security area (sec info, hash) calculation...
..................security area (sec info, hash) detecting size...
security area (sec info, hash) detecting parameters...
security area (sec info, hash) encoding...
done
flash: 98006F00000003:08EA0000000000
flash: 98006F00000003:08EA0000000000
Write: security area (sec info, hash)
security area (sec info, hash) calculation done
security area (sec info, cust) calculation...
identification header detected
customization: XJ35DL18
customization name adjusted
flash: 98006F00000003:08EA0000000000
flash: 98006F00000003:08EA0000000000
Write: security area (sec info, cust)
security area (sec info, cust) calculation done
security area (sec info, hash) calculation...
..................security area (sec info, hash) detecting size...
security area (sec info, hash) detecting parameters...
security area (sec info, hash) encoding...
done
flash: 98006F00000003:08EA0000000000
flash: 98006F00000003:08EA0000000000
Write: security area (sec info, hash)
security area (sec info, hash) calculation done
Check firmware integrity Done
====> Check firmware content ...
Check firmware content Done
====> Backup required data ...
original imei: 35644203004690
flash: 98006F00000003:08EA0000000000
Backup required data Done
====> Patch required data ...
Patch required data Done
====> Special operation ...
Special operation Done
====> Write ...
Write Done
====> Finalization ...
ffs formatting...
flash: 98006F00000003:08EA0000000000
Finalization Done
file saved: C:\Program Files\InfinityBox\MModule\backup_security\Alcatel-KR01x,Crystal_JRD25_06B_PCB01_GPRS_MT6225_S00.MAUI _06B_W07_28_SP1_V38__system_log_C6D69162_CA401D03_ 20101009-150213.B0X.bin
Finished, time used: 6 min 45 sec
Remove/Install battery now !

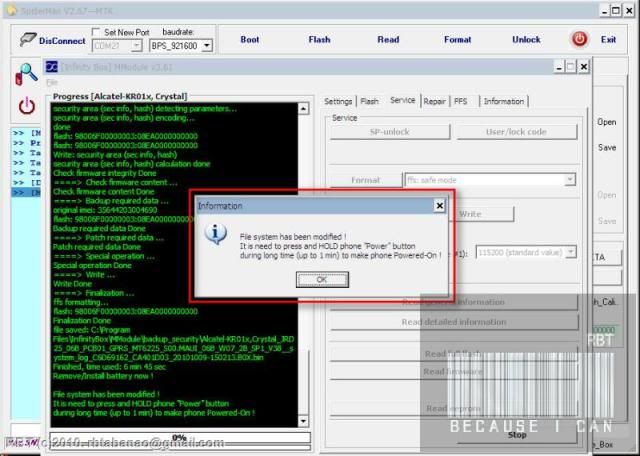

File system has been modified !
It is need to press and HOLD phone "Power" button
during long time (up to 1 min) to make phone Powered-On !

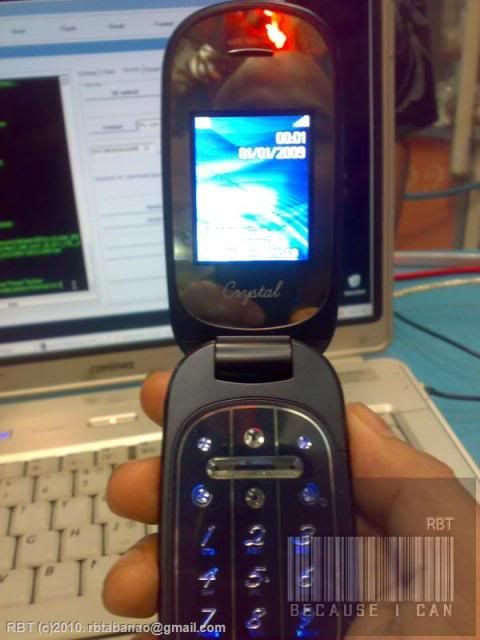

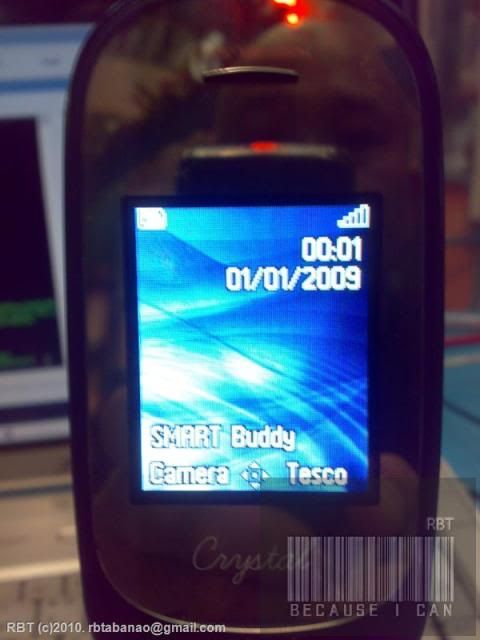

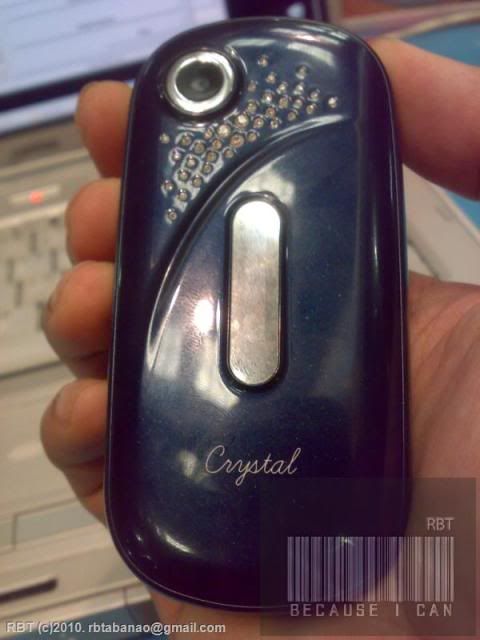

Some screenshot..
