alcatel OT V770 done in infinity
good evening mga bro share ko lang po ng konti...
unit: alcatel OT V770
problem: only logo then off.
action taken: full format in infinity box...

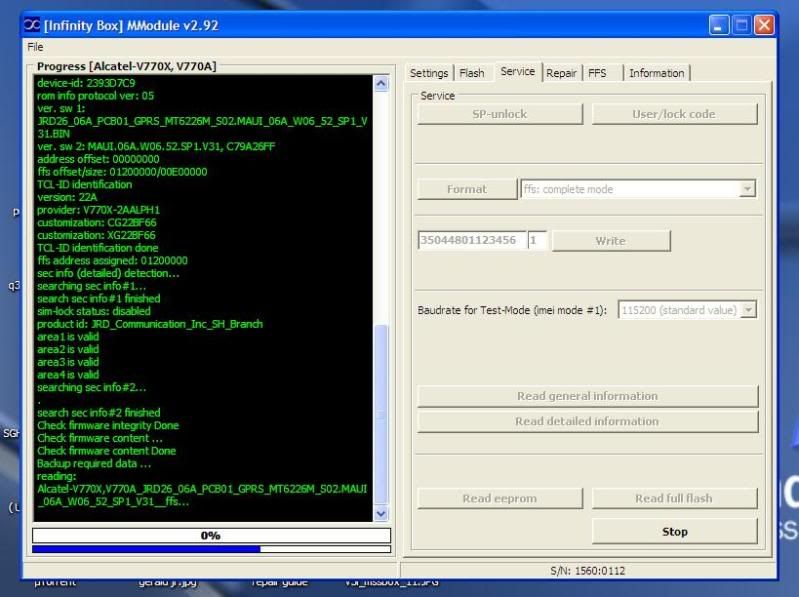

starting to format:
formating:

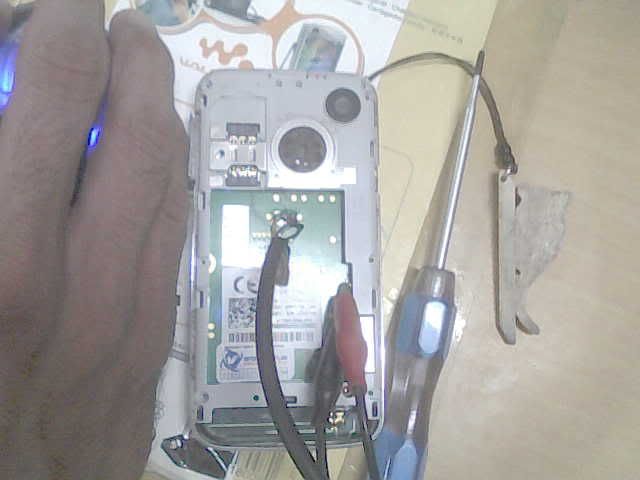

powering the units...

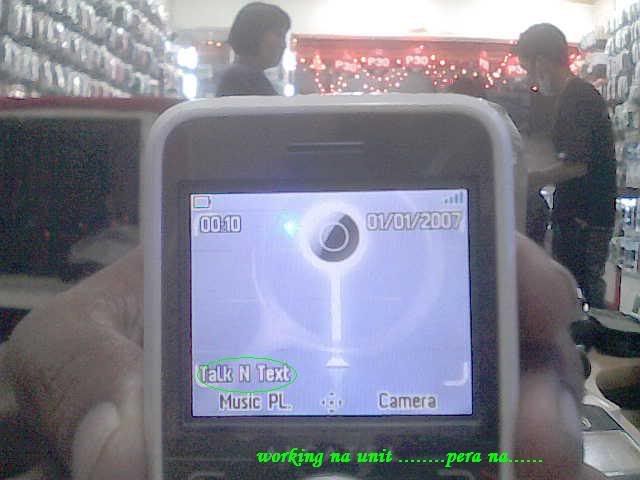

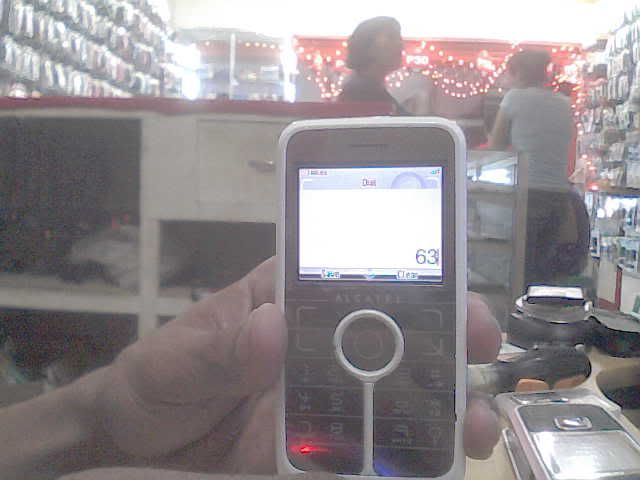

checking for signal:

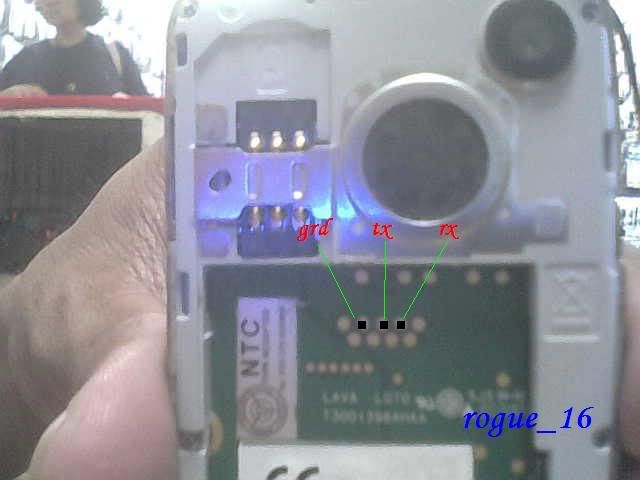

here is the pinout:
logs:
good evening mga bro share ko lang po ng konti...
unit: alcatel OT V770
problem: only logo then off.
action taken: full format in infinity box...
starting to format:
formating:
powering the units...
checking for signal:
here is the pinout:
logs:
Code:
COM3 [VCP1] selected
module v2.92
Device: Alcatel-V770X, V770A
Checking data, wait...
advanced flash detection enabled
Action: "format ffs"
Do you want to make ffs/eeprom backup before format ?
ffs/eeprom backup enabled, it may takes several minutes !
Boot ...
Press and HOLD Power button now !
19200 fixed
Connecting, wait...
Initializing [6219:8B03:8B02]...
CPU: MT6219
detected CPU: MT6226MA
chip: 0031:2087:A000
status: 01
boot packet size: 0400
Release Power button now !
Boot Done
Initialize ...
detecting chip #00 in region #00...
flash: 01227E22302200:2BEA0000000000
flash: Amd AMD/Fujitsu std [D 0004x008000 00FEx020000 0004x008000] 32Mb
number of flash chip/regions detected: 01/01
Initialize Done
Set baud ...
115200
Set baud Done
Initialize bootcode ...
Initialize bootcode Done
Check firmware integrity ...
searching rom info...
search rom info finished
rom info structure: 2nd [enhanced] generation
TCL-ID is present
startup code area #1 is Ok
startup code area #1 backup saved: C:\Program Files\InfinityBox\MModule\backup_security\id.2393D 7C9.[JRD26_06A_PCB01_GPRS_MT6226M_S02.MAUI_06A_W06_52_S P1_V31.BIN_FF269AC7].rpl
rom info detection finished
TCL-ID detection...
TCL-ID detection done
device-id: 2393D7C9
rom info protocol ver: 05
ver. sw 1: JRD26_06A_PCB01_GPRS_MT6226M_S02.MAUI_06A_W06_52_S P1_V31.BIN
ver. sw 2: MAUI.06A.W06.52.SP1.V31, C79A26FF
address offset: 00000000
ffs offset/size: 01200000/00E00000
TCL-ID identification
version: 22A
provider: V770X-2AALPH1
customization: CG22BF66
customization: XG22BF66
TCL-ID identification done
ffs address assigned: 01200000
sec info (detailed) detection...
searching sec info#1...
search sec info#1 finished
sim-lock status: disabled
product id: JRD_Communication_Inc_SH_Branch
area1 is valid
area2 is valid
area3 is valid
area4 is valid
searching sec info#2...
Code:
.
search sec info#2 finished
Check firmware integrity Done
Check firmware content ...
Check firmware content Done
Backup required data ...
reading: Alcatel-V770X,V770A_JRD26_06A_PCB01_GPRS_MT6226M_S02.MAUI_ 06A_W06_52_SP1_V31__ffs...
file saved: C:\Program Files\InfinityBox\MModule\Alcatel-V770X,V770A_JRD26_06A_PCB01_GPRS_MT6226M_S02.MAUI_ 06A_W06_52_SP1_V31__ffs_20091213-172520.B0E.bin
original imei: 35965501013398
flash: 01227E22302200:2BEA0000000000
Backup required data Done
Patch required data ...
Patch required data Done
Special operation ...
Special operation Done
Write ...
Write Done
Finalization ...
ffs formatting...
flash: 01227E22302200:2BEA0000000000
Finalization Done
file saved: C:\Program Files\InfinityBox\MModule\backup_security\Alcatel-V770X,V770A_JRD26_06A_PCB01_GPRS_MT6226M_S02.MAUI_ 06A_W06_52_SP1_V31__system_log_2393D7C9_FF269AC7_2 0091213-172735.B0X.bin
Finished, time used: 1682 sec
Remove/Install battery now !
File system has been modified !
It is need to press and HOLD phone "Power" button
during long time (up to 1 min) to make phone Powered-On !
