Cherry Mobile S100 Dead Boot DOne by Z3x EasyJtag

[wapakelz]

Unit Model:
Cherry Mobile Flare S100

Problem:
Deadboot

Action Taken:

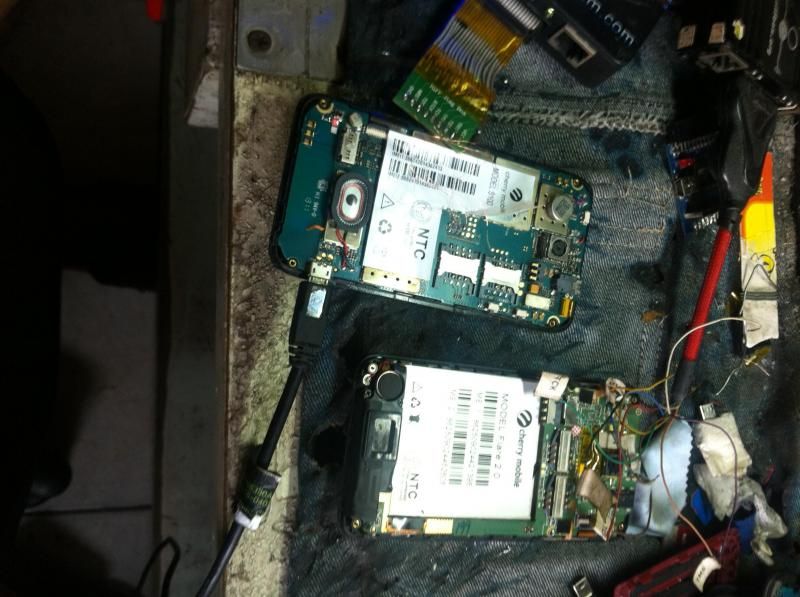

1. Solder the jtag pinout, for jtag pinout can be download on Z3X support

<table width="469"><tbody><tr><td class="td1" width="20"></td><td class="td2">
</td></tr></tbody></table>

2. Download the dump bin file from Z3X support Write bin file with easy jtag software

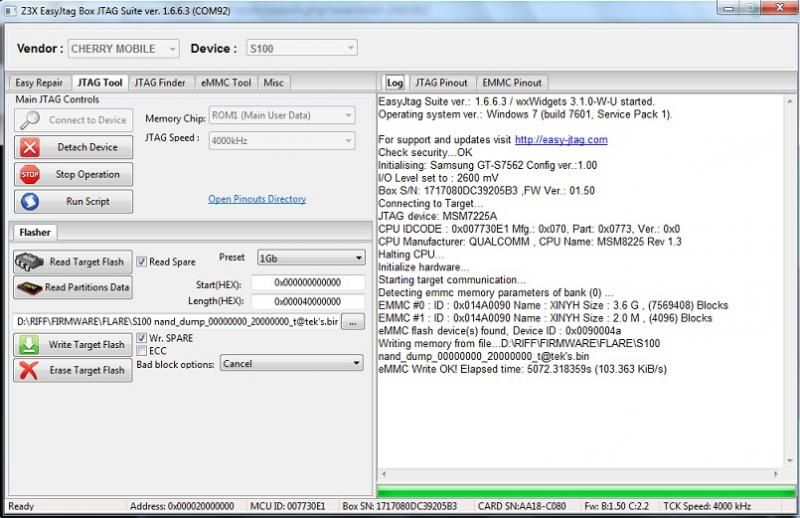

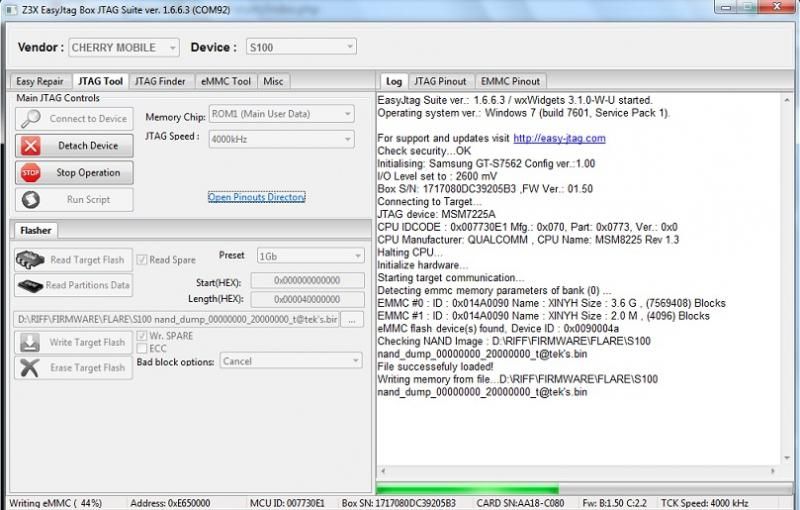

Screenshots:

<table width="549"><tbody><tr><td class="td1" width="20"></td><td class="td2">
</td></tr></tbody></table>

<table width="540"><tbody><tr><td class="td1" width="20"></td><td class="td2">
</td></tr></tbody></table>


<table width="261"><tbody><tr><td class="td1" width="20"></td><td class="td2">
</td></tr></tbody></table>

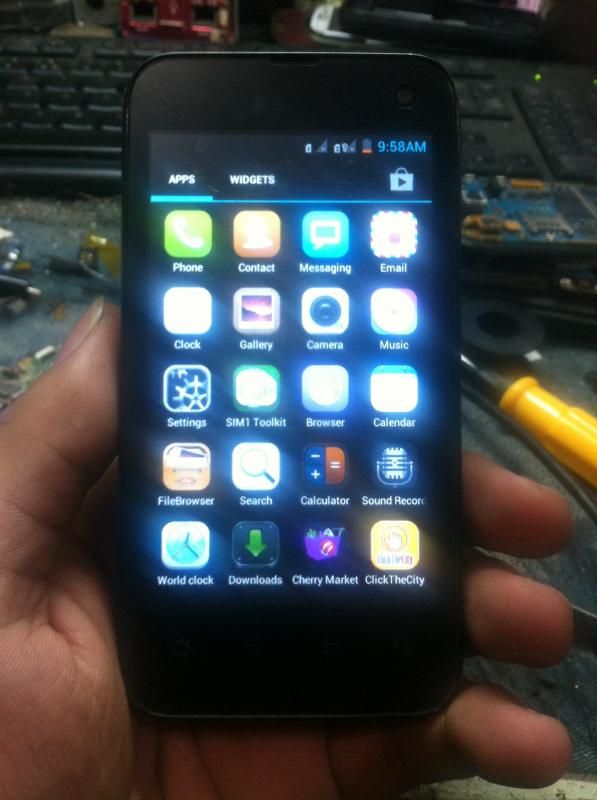

DONE
