CKK Lunar1 ( CPU: MT6572 ) Restart Problem Firmware Inside

Flashing via Miraclebox cracked

search nalang kayo dito sa tahanan ng ant

hindi ko na kuhanan ng screen shot picture nalang ng tablet
Bord ID K0706M V1.2
Code:
  MT65xx ANDROID EMMC File:
  The File Information:
  N/A
  1. Power Off Phone , Remove Battery, Insert Battery Back
  2. Insert USB cable. In some cases Required Hold BootKey
  3. Use Miracle Boot Key In cases Boot key not Find
  4. Battery Should be Charged more then 50%
  Waiting for USB Port...
  Set MediaTek PreLoader USB VCOM Port (COM50)
  Please Hold "ON" to connect with the phone...
  Connected to Phone.
  CPU: MT6572 SW:0000 Ver: CA01
  Downloading Boot8 ...
  EMMC Size: 0x00E9000000
  Flash Type: EMMC
  INT/EXT RAM  Size: 0x0+0x0
  Reading infr(EMMC)...
  id:TY0712B_3G-HD-2_KK_V3.8.1_160309
  version:4.4.2
  model:C-723
  brand:TY0712-3G-HD-2
  manufacturer:alps
  PRELOADER  BaseAddr:0x0  Size:0x1000000
  MBR  BaseAddr:0x1000000  Size:0x80000
  EBR1  BaseAddr:0x1080000  Size:0x80000
  PRO_INFO  BaseAddr:0x1100000  Size:0x300000
  NVRAM  BaseAddr:0x1400000  Size:0x500000
  PROTECT_F  BaseAddr:0x1900000  Size:0xA00000
  PROTECT_S  BaseAddr:0x2300000  Size:0xA00000
  SECCFG  BaseAddr:0x2D00000  Size:0x20000
  UBOOT  BaseAddr:0x2D20000  Size:0x60000
  BOOTIMG  BaseAddr:0x2D80000  Size:0x600000
  RECOVERY  BaseAddr:0x3380000  Size:0x600000
  SEC_RO  BaseAddr:0x3980000  Size:0x40000
  MISC  BaseAddr:0x39C0000  Size:0x80000
  LOGO  BaseAddr:0x3A40000  Size:0x300000
  EXPDB  BaseAddr:0x3D40000  Size:0xA00000
  ANDROID  BaseAddr:0x4740000  Size:0x35200000
  CACHE  BaseAddr:0x39940000  Size:0xE200000
  USRDATA  BaseAddr:0x47B40000  Size:0xA0BC0000
  BMTPOOL  BaseAddr:0xFFFF0000  Size:0x1500000
  BaseAddr:0x0  Size:0x0
>>Done.

(cross flashing po)

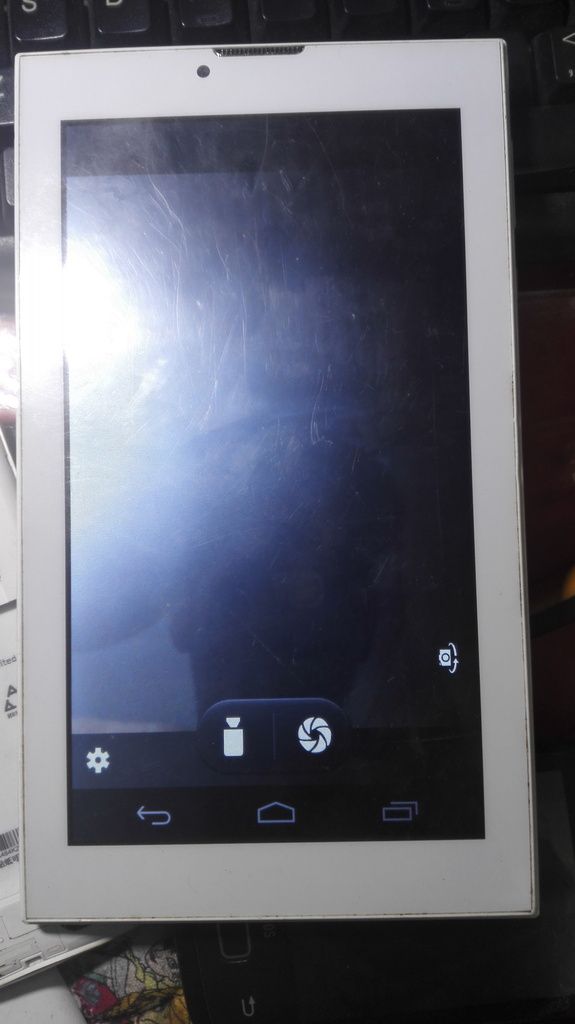

CAMERA OK (Back and front)

WIFI OK

[URL=http://s302.photobucket.com/user/lights_17/media/IMG_20161019_160608_zpslnbmoelx.jpg.html][/URL]

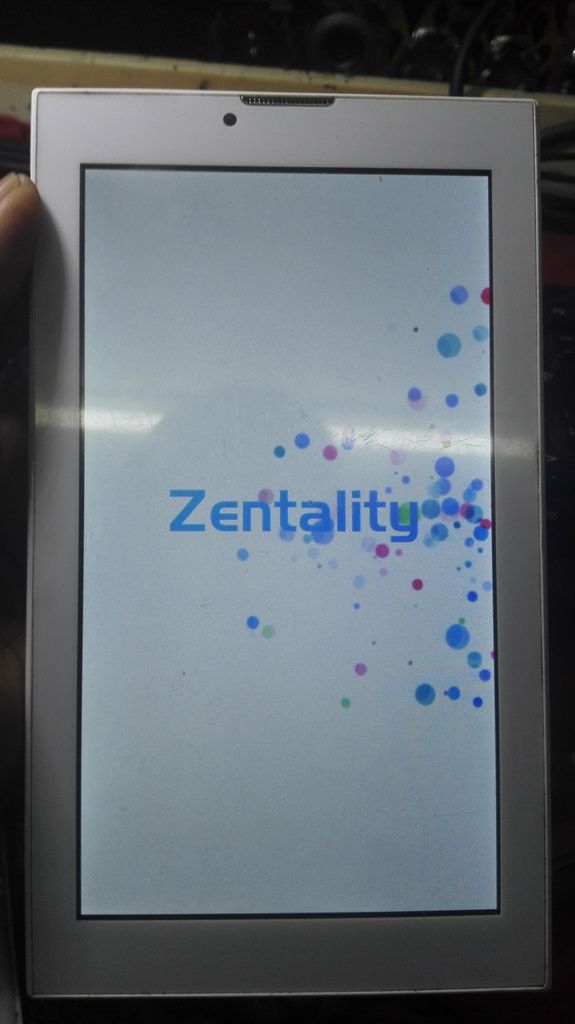

Zentality Firmware BIn files po



Clink ant to download your firmware



good luck po


have a nice day mga ka antss
