How to Convert Bin file to Scatter Rom File

PhoneWar

Registered
Joined
Mar 17, 2015
Messages
876
Reaction score
3
Points
81
Location
manila


How to make MTK Stock Rom (Scatter File)

From Volcano Read .BIN
File Step by Step Tutorial

This Procedure no need to root Phone
only ADB turned on in phone
Readed flash (.BIN Format) By Volcano too or Merapi tool


MTK Droid Tool

Follow This Steps

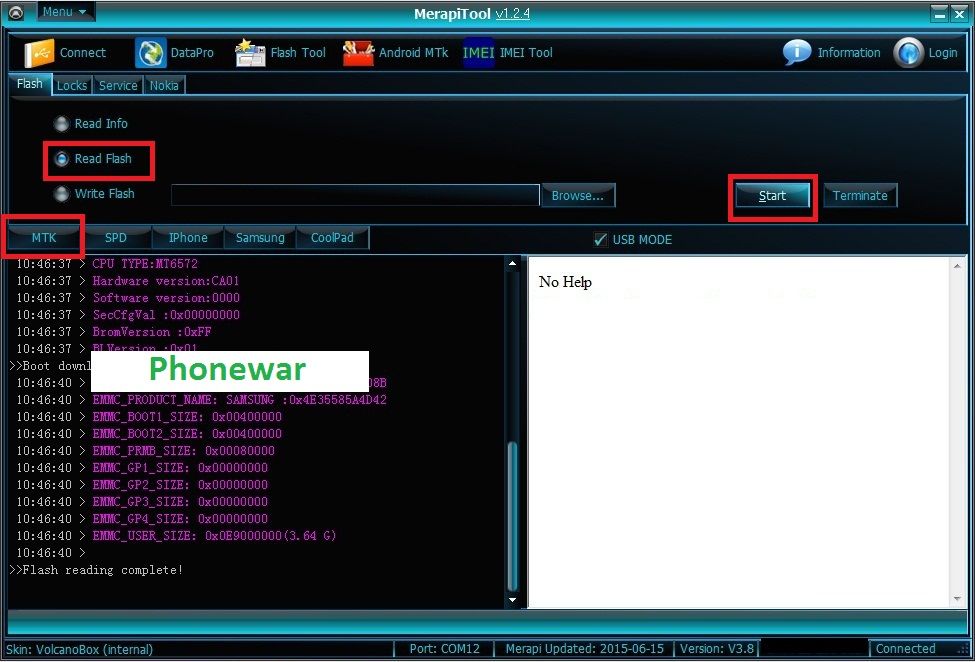

Read Flash File .Bin Format

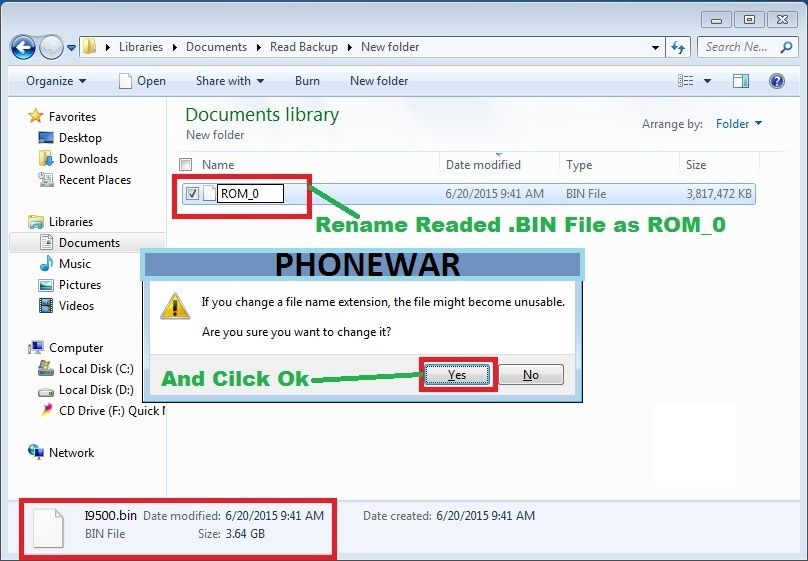

Rename .BIN file as "ROM_0"

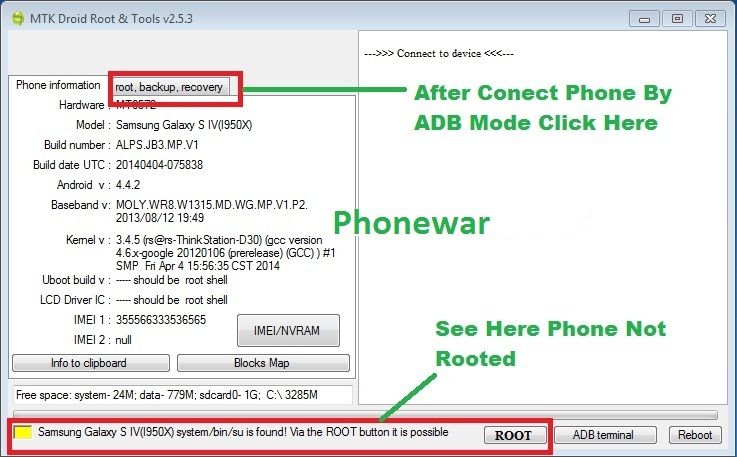

Now connect phone to MTK Droid Tool in ADB mode
And select "root,backup,recovery " in MTK Droid Tool

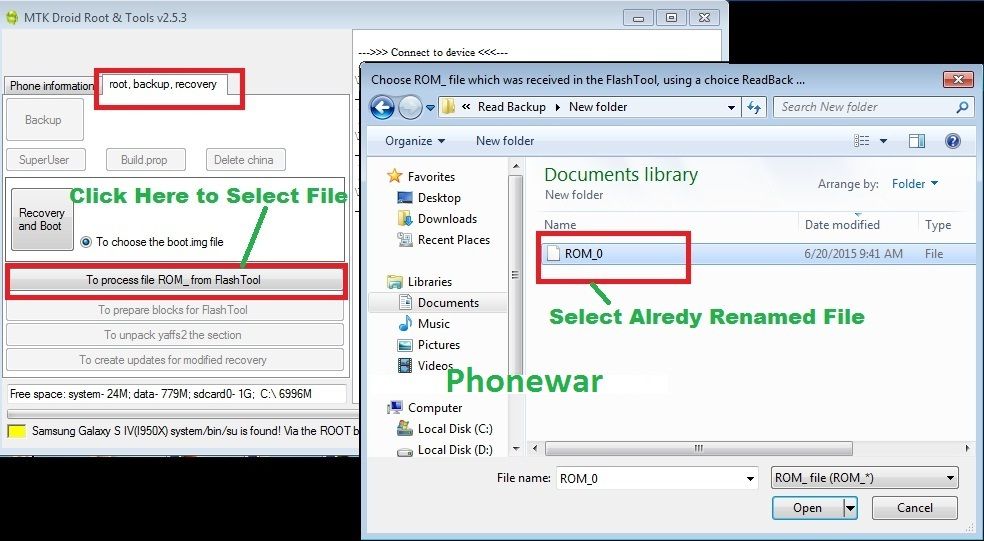

now click "to Process File Rom_ From Flash tool" and Select Already Renamed ROM_0 File

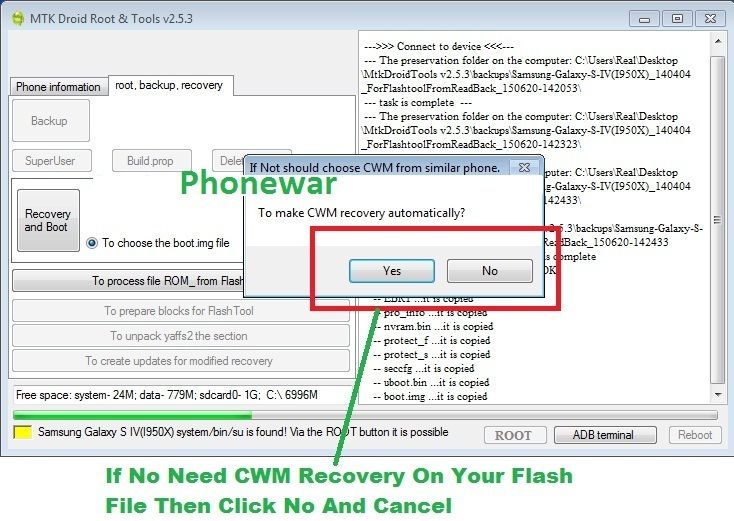

Now process will started after select file..if ask to make CWM recovery automatically
Click YES and NO process will continue (if you Need CWM recovery on yor Phone click Yes)

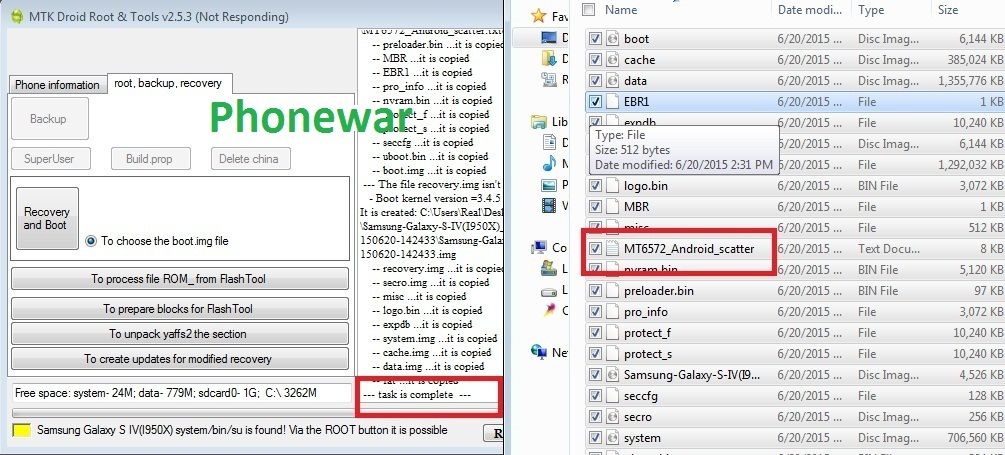

now MTK Droid tool show "Task is Complete..!!" now your Stock rom Scatter File is ready
you can find your file in MTK Droid Tool/backup

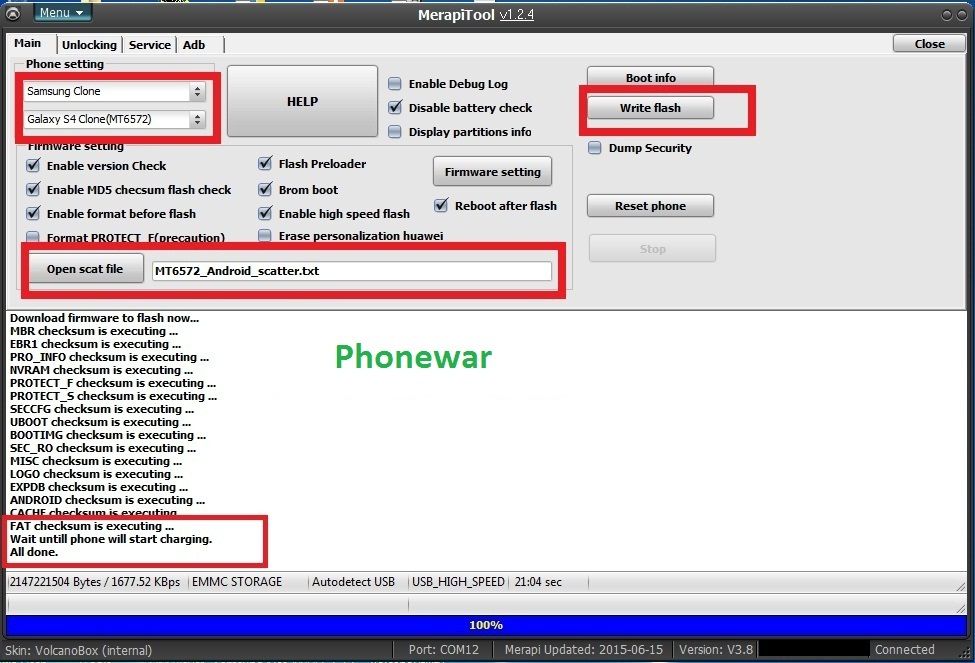

Then Flash w/ merapi or sp flash tool



in case after flash Phone hang in logo then format with merapi tool 100% working
this Method is usefull for which can't read stock rom by MTK Droid tool or any other
tool w/o Root.!!


Note
Some kitkat,lollipop MTK android Phones Root not supported yet and you have
.BIN backup but Don't have Stock rom(Read Backup & Format.. After Format
Phone is Dead ..! Need Stock rom from Alive Phone


:x:x:x​

sinubukan q n yan boss pero ang laki ng files ng kinalabasan.. :D
