i phone mini mobile lock code done w/pin out..[Reference]

[BLIND]

good day po sa lahat share ko lang po tong ginawa ko i phone mini mobile may lock code eto po yung unit

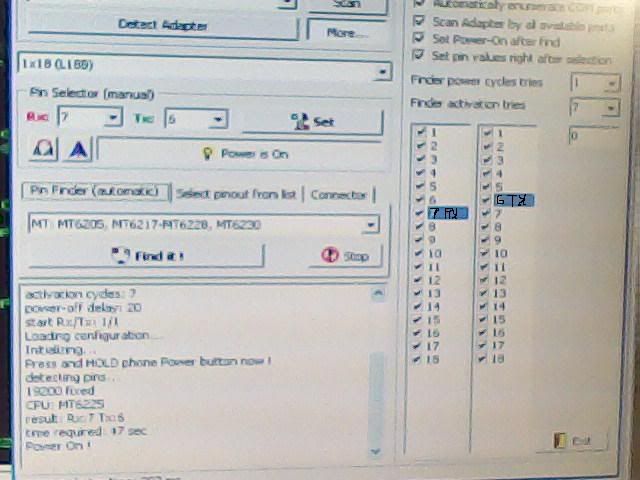

eto po yung pin out

format ko po
COM3 [VCP0] selected
module v2.90
Device: Autodetect 6205-6227 NOR
Checking data, wait...
advanced flash detection enabled
Action: "format ffs"
ffs/eeprom backup enabled, it may takes several minutes !
Boot ...
Press and HOLD Power button now !
19200 fixed
Connecting, wait...
Initializing [6225:8A05:8A00]...
CPU: MT6225
high speed boot On
chip: 0001:A703:0006
status: FF
boot packet size: 0400
Release Power button now !
Boot Done
Initialize ...
detecting chip #00 in region #00...
flash: EC227E22632260:18E59F00000000
flash: AMD/Fujitsu std [D 0004x010000 007Ex040000 0004x010000] 32Mb
detecting chip #01 in region #00...
flash: EC227E22632260:18E59F00000000
flash: AMD/Fujitsu std [D 0004x010000 007Ex040000 0004x010000] 32Mb
number of flash chip/regions detected: 02/01
Initialize Done
Set baud ...
115200
Set baud Done
Initialize bootcode ...
Initialize bootcode Done
Check firmware integrity ...
device parameters autodetection in progress...
detecting chip #00 in region #00...
flash: EC227E22632260:18E59F00000000
flash: AMD/Fujitsu std [D 0004x010000 007Ex040000 0004x010000] 32Mb
detecting chip #01 in region #00...
flash: EC227E22632260:18E59F00000000
flash: AMD/Fujitsu std [D 0004x010000 007Ex040000 0004x010000] 32Mb
it's time to stop: 18F09FE518F09FE518F09FE518F09FE518F09FE518F09FE5
number of flash chip/regions detected: 01/01
total flash region size: 02000000
detect device rom info...
detection phase #1...
detect device rom info finished
rom info structure: 2nd [standard] generation
====================
New firmware detected (v.2.90, database date: 08.09.2009):
YD800G_C092.6225.L01.F08.D6.C2.U1.V2.08_MP31.BIN

This firmware is missing in support area. If this phone is good and working:

- make "Read full flash" operation
- send flash backup files to support: mt62xx@gmail.com
- include in your e-mail full text from phone back label (phone name etc.)
====================
rom info detection finished
rom info protocol ver: 04
ver. sw 1: YD800G_C092.6225.L01.F08.D6.C2.U1.V2.08_MP31.BIN
ver. sw 2: YD800G_C092.6225.L01.F08.D6.C2.U1.V2.08_MP31, 00000000
ffs offset/size: 01C00000/00200000
detecting ffs/eeprom area in 1 chip(s)...
standard ffs/eeprom offset detected: 01C00000
flash: EC227E22632260:18E59F00000000
checking area [00000000]: 00000000-01FFFFFF...
ffs/eeprom found near: 01C00000
detecting ffs/eeprom size...
ffs/eeprom size: 00400000
ffs/eeprom chip: 00
ffs/eeprom area: 00000000:01C00000-01FFFFFF
detect device sec info...
detection phase #1...
.
detect device sec info finished
Check firmware integrity Done
Check firmware content ...
Check firmware content Done
Backup required data ...
reading: YD800G_C092.6225.L01.F08.D6.C2.U1.V2.08_MP31__ffs. ..
file saved: C:\Program Files\InfinityBox\ChineseMiracle\iphone mini mobile\YD800G_C092.6225.L01.F08.D6.C2.U1.V2.08_MP3 1__ffs_20090920-195044.B0E.bin
flash: EC227E22632260:18E59F00000000
Backup required data Done
Patch required data ...
Patch required data Done
Special operation ...
Special operation Done
Write ...
Write Done
Finalization ...
ffs formatting...
flash: EC227E22632260:18E59F00000000
Finalization Done
Finished, time used: 477 sec
Remove/Install battery now !

File system has been modified !
It is need to press and HOLD phone "Power" button
during long time (up to 1 min) to make phone Powered-On !
eto napo tangal na ang lock code

salamat po sainyo lahat.
