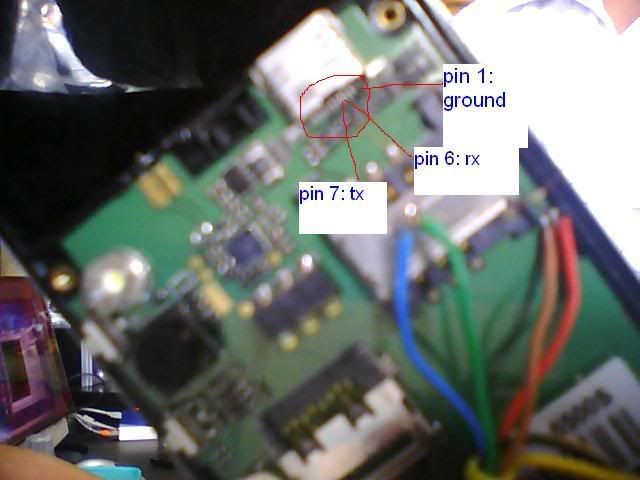

my pinout 6500S and repaired done by infinity..

About Us

PinoyTechnician.com was founded on June 12, 2014 by five individuals — intoy, sAmwell, Alexaliah Gsm, dArk_shAdE & edcuz — with the focus of providing support and creating a dedicated platform for technicians in the Philippines.

Our founders envisioned a friendly, helpful, and professional space where Filipino technicians could connect, learn, and share their expertise in electronics, mobile, and computer repair.

Our Mission

To empower and support the community of Filipino technicians by providing resources, discussions, and guidance that help everyone grow — from beginners to experts.

What You'll Find Here

  • Repair guides, tutorials, and technical discussions.
  • Advice and reviews about tools, parts, and best practices.
  • A helpful community always ready to assist and share knowledge.

Join Us!

Whether you’re here to ask, to teach, or simply to connect with fellow Pinoy techs, you’re always welcome. Together, let’s continue building and supporting the Filipino technician community!

If you have any questions or suggestions, feel free to contact us at: admin@pinoytechnician.com

Thank you for visiting and for being part of the PinoyTechnician family!

Newest members

Online statistics

Members online
9
Guests online
181
Total visitors
190
Totals may include hidden visitors.

Stay Connected

Latest posts

B

BLIND

Registered
Joined
Dec 23, 2014
Messages
2,965


chinese NOKIA 6500S no power,repaired via infinity,by clicking only format FFS....




hers the log.:


COM4 [VCP0] selected
Device: Autodetect
Checking data, wait...
advanced flash detection active
Action: reset
Boot...
Press and HOLD Power button now !
baud autodetection active
19200
Connecting, wait...
Initializing[6226:8A02:8A01]...
high speed disabled
boot step size: 0002
Release Power button now !
Boot Done
Initialize...
detecting chip #00 in region #00...
flash: 01227E22202200:29EA0000000000
flash: Amd AMD/Fujitsu std [D 0004x010000 003Ex040000 0004x010000] 16Mb
number of flash chip/regions detected: 01/01
Initialize Done
Set baud...
921600
Set baud Done
Check space...
device parameters autodetection in progress..
detecting chip #00 in region #00...
flash: 01227E22202200:29EA0000000000
flash: Amd AMD/Fujitsu std [D 0004x010000 003Ex040000 0004x010000] 16Mb
number of flash chip/regions detected: 01/01
total flash region size: 01000000
detect device identification, method #1...
detection phase #1...
detect device parameters finished
structure: 2nd [enhanced] (or higher) generation
identification data Ok
identification data backup saved: id.2B4A1EDB.[S500_PCB01_GPRS_MT6227_S01.BIN_8F62B138].rpl
identification detection finished
device-id: 2B4A1EDB
protocol ver: 04
ver. sw1: S500_PCB01_GPRS_MT6227_S01.BIN
ver. sw2: S500.1
ffs offset/size: 00E00000/00200000
detecting eeprom area in 1 chip(s)...
flash: 01227E22202200:29EA0000000000
checking area[00000000]: 00000000-00FFFFFF...
eeprom found near: 00E00000
detecting eeprom size...
eeprom size: 00200000
eeprom chip: 00
eeprom area detected[00000000]: 00E00000-00FFFFFF
reading [eeprom[S500_PCB01_GPRS_MT6227_S01.BIN]]...
file saved: backup_eeprom[S500_PCB01_GPRS_MT6227_S01.BIN]_20080705-221255.B0E.bin
flash: 01227E22202200:29EA0000000000
Check space Done
Manipulation...
Manipulation Done
Finalization...
Finalization Done
Write...
formatting...
flash: 01227E22202200:29EA0000000000
Write Done
file saved: backup_system_log_2B4A1EDB_S500_PCB01_GPRS_MT6227_ S01.BIN_8F62B138_20080705-221316.B0X.bin
Finished, time used: 164 sec
Remove/Install battery now !

​
