N900 hangup successfully fixed by maemo (complete procedure)

  • Thread starter Thread starter FIX
  • Start date Start date
F

FIX

Anonymous
status of phone : nokia only with 5 dots on the screen only

you need the ff:

1. maemo flasher http://depositfiles.com/en/files/0fenjtg5n
2. 5310 cable
3. tested fw http://depositfiles.com/en/files/be78stu6o ( you can use navifirm to download 2010 fw version for this phone)

in my case i am using this one (no bugs firmware, other firmwares sometimes will not recognize simcards)RX-51_2009SE_10.2010.19-1.003_PR_COMBINED_003_ARM

if you have no navifirm, i provided here a modified one http://professorlinux.at.ua/linux_bb5_firmware_downloader.exe

@install navifirm
@ download firmware and put it inside this directory c:\program files\maemo\flasher-3.5

now go to START > RUN> type CMD
type cd c:\program files\maemo\flasher-3.5

1. Turn off your phone
2. Press and hold down key ‘u’
3. Connect USB cable between Maemo device and host PC while holding down key ‘u’
4. When USB cable gets connected it powers Maemo device and set’s it to flashing mode
5. When USB icon appears on right upper corner Maemo device is in flashing mode
6. You can release key ‘u’

* in CMD exe..Run the following command: type this one
flasher-3.5.exe -F RX-51_2009SE_10.2010.19-1.
003_PR_COMBINED_003_ARM.bin -f -R

hit enter key on your keyboard to flash your phone...

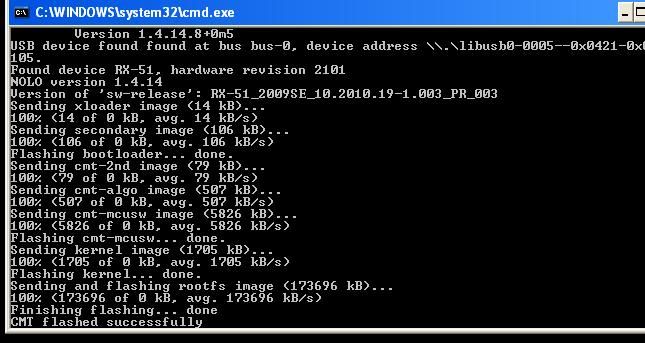

here is the log during the flashing operation
Quote:
Microsoft Windows XP [Version 5.1.2600]
(C) Copyright 1985-2001 Microsoft Corp.

C:\Documents and Settings\eyestrain>cd maemo\flasher-3.5
The system cannot find the path specified.

C:\Documents and Settings\linux>cd c:\program files\maemo\flasher-3.5

C:\Program Files\maemo\flasher-3.5>flasher-3.5.exe -F RX-51_2009SE_10.2010.19-1.
003_PR_COMBINED_003_ARM.bin -f -R
flasher v2.5.2 (Sep 24 2009)

SW version in image: RX-51_2009SE_10.2010.19-1.003_PR_003
Image 'kernel', size 1705 kB
Version 2.6.28-20101501+0m5
Image 'rootfs', size 173696 kB
Version RX-51_2009SE_10.2010.19-1.003_PR_003
Image 'cmt-2nd', size 81408 bytes
Version BB5_09.36
Image 'cmt-algo', size 519808 bytes
Version BB5_09.36
Image 'cmt-mcusw', size 5826 kB
Version rx51_ICPR82_10w08
Image '2nd', size 14720 bytes
Valid for RX-51: 2217, 2218, 2219, 2220, 2120
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2217, 2218, 2219, 2220, 2120
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2217, 2218, 2219, 2220, 2120
Version 1.4.14.8+0m5
Image '2nd', size 14720 bytes
Valid for RX-51: 2101, 2102, 2103
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2101, 2102, 2103
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2101, 2102, 2103
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2307, 2308, 2309, 2310
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2307, 2308, 2309, 2310
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2307, 2308, 2309, 2310
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2407, 2408, 2409, 2410
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2407, 2408, 2409, 2410
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2407, 2408, 2409, 2410
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2301, 2302, 2303, 2304, 2305, 2306
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2301, 2302, 2303, 2304, 2305, 2306
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2301, 2302, 2303, 2304, 2305, 2306
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2401, 2402, 2403, 2404, 2405, 2406
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2401, 2402, 2403, 2404, 2405, 2406
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2401, 2402, 2403, 2404, 2405, 2406
Version 1.4.14.8+0m5
Image '2nd', size 14720 bytes
Valid for RX-51: 2104, 2105, 2106, 2107, 2108, 2109, 2110, 2111, 2112, 2
113, 2114, 2115, 2116, 2117, 2118, 2119
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2104, 2105, 2106, 2107, 2108, 2109, 2110, 2111, 2112, 2
113, 2114, 2115, 2116, 2117, 2118, 2119
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2104, 2105, 2106, 2107, 2108, 2109, 2110, 2111, 2112, 2
113, 2114, 2115, 2116, 2117, 2118, 2119
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2501, 2502, 2503, 2504, 2505, 2506
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2501, 2502, 2503, 2504, 2505, 2506
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2501, 2502, 2503, 2504, 2505, 2506
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2607, 2608, 2609, 2610
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2607, 2608, 2609, 2610
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2607, 2608, 2609, 2610
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2507, 2508, 2509, 2510
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2507, 2508, 2509, 2510
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2507, 2508, 2509, 2510
Version 1.4.14.8+0m5
Image '2nd', size 14720 bytes
Valid for RX-51: 2201, 2202, 2203, 2204, 2205, 2206, 2207, 2208, 2209, 2
210, 2211, 2212, 2213, 2214, 2215, 2216
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2201, 2202, 2203, 2204, 2205, 2206, 2207, 2208, 2209, 2
210, 2211, 2212, 2213, 2214, 2215, 2216
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2201, 2202, 2203, 2204, 2205, 2206, 2207, 2208, 2209, 2
210, 2211, 2212, 2213, 2214, 2215, 2216
Version 1.4.14.8+0m5
Image '2nd', size 14848 bytes
Valid for RX-51: 2601, 2602, 2603, 2604, 2605, 2606
Version 1.4.14.8+0m5
Image 'xloader', size 14848 bytes
Valid for RX-51: 2601, 2602, 2603, 2604, 2605, 2606
Version 1.4.14.8+0m5
Image 'secondary', size 109440 bytes
Valid for RX-51: 2601, 2602, 2603, 2604, 2605, 2606
Version 1.4.14.8+0m5
USB device found found at bus bus-0, device address \\.\libusb0-0005--0x0421-0x0
105.
Found device RX-51, hardware revision 2101
NOLO version 1.4.14
Version of 'sw-release': RX-51_2009SE_10.2010.19-1.003_PR_003
Sending xloader image (14 kB)...
100% (14 of 0 kB, avg. 14 kB/s)
Sending secondary image (106 kB)...
100% (106 of 0 kB, avg. 106 kB/s)
Flashing bootloader... done.
Sending cmt-2nd image (79 kB)...
100% (79 of 0 kB, avg. 79 kB/s)
Sending cmt-algo image (507 kB)...
100% (507 of 0 kB, avg. 507 kB/s)
Sending cmt-mcusw image (5826 kB)...
100% (5826 of 0 kB, avg. 5826 kB/s)
Flashing cmt-mcusw... done.
Sending kernel image (1705 kB)...
100% (1705 of 0 kB, avg. 1705 kB/s)
Flashing kernel... done.
Sending and flashing rootfs image (173696 kB)...
100% (173696 of 0 kB, avg. 173696 kB/s)
Finishing flashing... done
CMT flashed successfully

C:\Program Files\maemo\flasher-3.5>

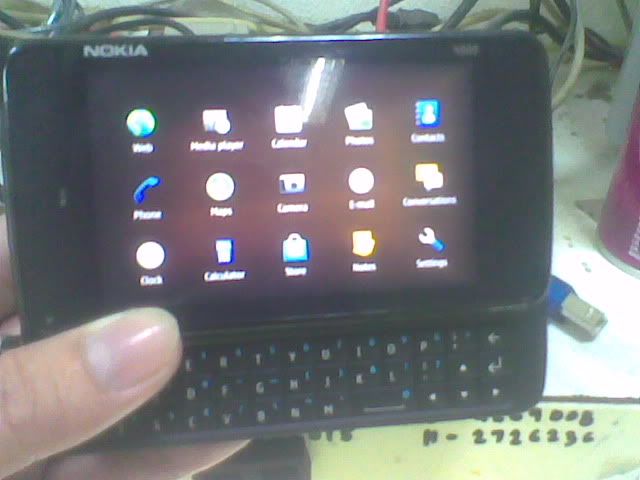

then you can smile now....finished product
