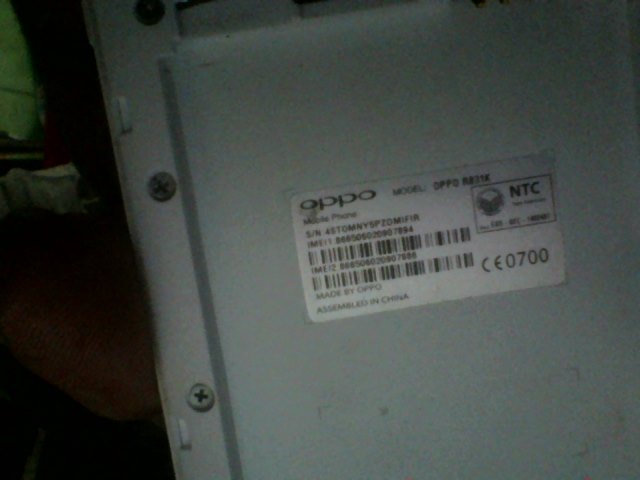

oppo r831

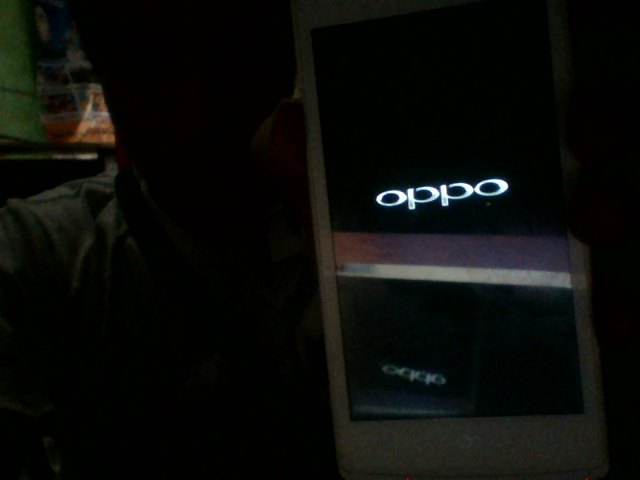

hang logo
procedure;
1.https://www.4shared.com/rar/ger5lomHda/R831K_tested_nck_bim.html
2.open cm2
3lagay scater file sa cm2
4.flash
5.wait matapos ang flash
6.open ang phone

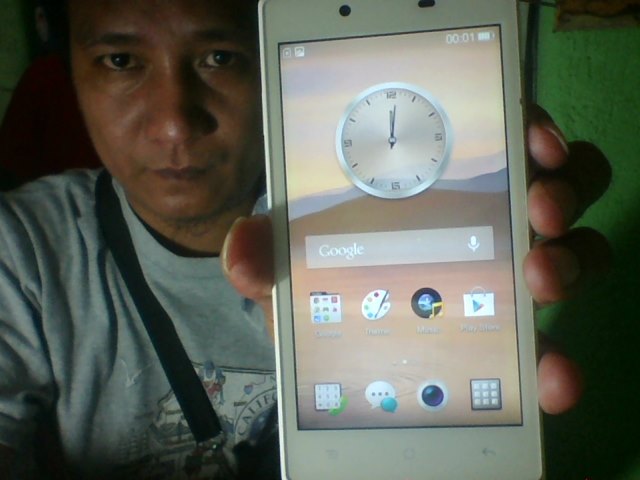

8.done
credit nalang po sa original na may ari ng files
salamat sa pag view..
hang logo
procedure;
1.https://www.4shared.com/rar/ger5lomHda/R831K_tested_nck_bim.html
2.open cm2
3lagay scater file sa cm2
4.flash

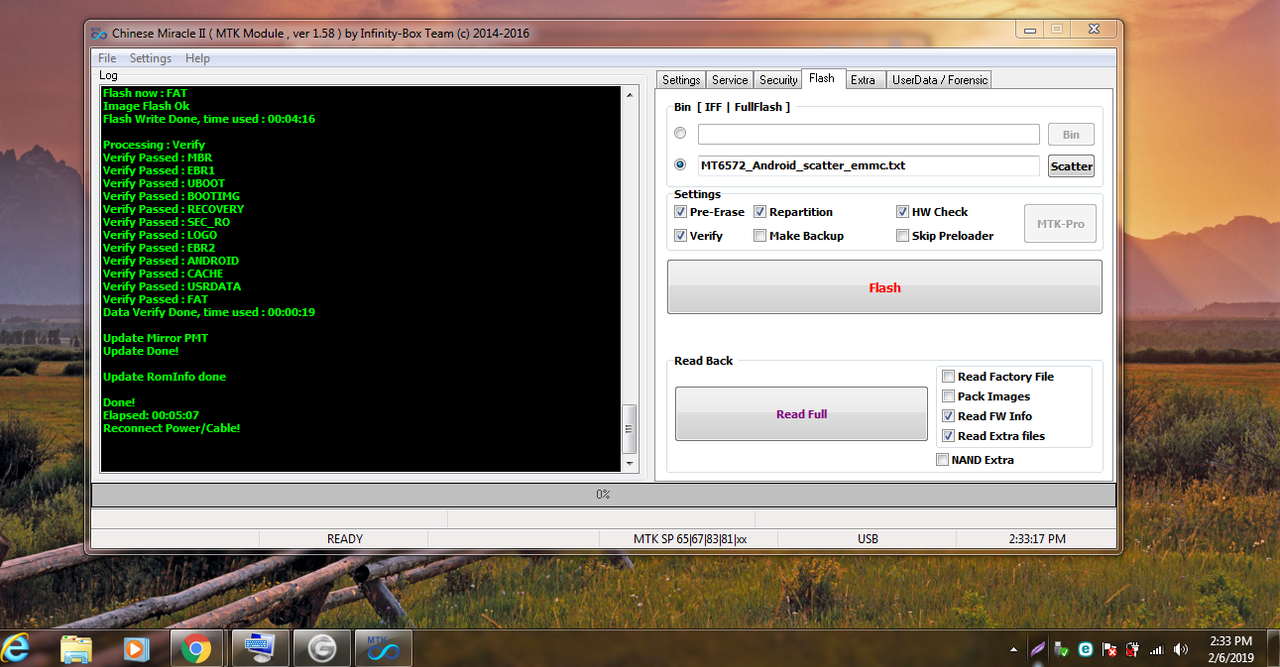

Code:
Operation : Flash [ v1.58 ]
======= Flash
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey
Wait for phone...
Phone found! [ 8 ]
Sync...
Inital Boot Ok!
BB_CPU_PID : 6572
BB_CPU_NME : [MediaTek] MT6572_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x0005
BLVersion : 0x00FE
PreLoader : NOT Active [ Erased ]
BootLdrSS : NORMAL with PRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x88
NAND Flash : NOT INSTALLED
eMMC Flash : 90014A4834473164040503A22A6BA1AB
Initialize Memory ...
DRAM configured from ScatFW!
DRAM initialize passed!
DRAM size : 0x40000000
DAgent sent , init HW now
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x90 , OEM : 014A
[eMMC] : FLASH_INF : [HYNIX] , d1G4
[eMMC] : FLASH_CID : 90014A4834473164040503A22A6BA1AB
[eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00400000
[eMMC] : FLASH_LEN : 0x00000000E9000000
[eMMC] : FLASH_UCP : 3728 MiB [eMMC 4 GiB]
DEV RID : 0x50AC1F4A9617F3EECD4DDC3E9BA20E05
INT RAM : 0x00020000
EXT RAM : 0x40000000 [1 GiB]
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
ScatCFG : BaseBand : MT6572 , Project : OPPO72_14079 , Storage : EMMC
Setting : Flash Pre-Erase (Safe) : Enabled
Setting : AFF verify : Enabled
Setting : HW verify : Enabled
Switching to HSUSB
HSUSB Init Ok
BL : Check HW compatibility
BL : BBID supported by BootLoader!
BL : Check eMMC compatibility
BL : eMMC supported by BootLoader!
BL : BatteryLevel : 3911 mV
BL : BatteryLevel Ok
BL : Flash Pre-Erase
Total blocks to Erase : 4
Erase : 0x0000000000C00000-0x0000000000100000
Erase : 0x0000000002900000-0x0000000001A80000
Erase : 0x0000000004480000-0x0000000002000000
Erase : 0x0000000007480000-0x0000000080900000
Flash Pre-Erase Done, time used : 00:00:04
SecCfg Passed , 1799
BMT remark not need. Will skip
Sending Preloader ...
Use : preloader_OPPO72_14079.bin
Preloader Sent , Init passed
SecCfg Passed , 1799
PartCount : 0017
Update PMT by user request
Repartition Done!
Use FLN Mode
Processing : Flash Write
Flash now : MBR
Image Flash Ok
Flash now : EBR1
Image Flash Ok
Flash now : UBOOT
Image Flash Ok
Flash now : BOOTIMG
Image Flash Ok
Flash now : RECOVERY
Image Flash Ok
Flash now : SEC_RO
Image Flash Ok
Flash now : LOGO
Image Flash Ok
Flash now : EBR2
Image Flash Ok
Flash now : ANDROID
Image Flash Ok
Flash now : CACHE
Image Flash Ok
Flash now : USRDATA
Image Flash Ok
Flash now : FAT
Image Flash Ok
Flash Write Done, time used : 00:04:16
Processing : Verify
Verify Passed : MBR
Verify Passed : EBR1
Verify Passed : UBOOT
Verify Passed : BOOTIMG
Verify Passed : RECOVERY
Verify Passed : SEC_RO
Verify Passed : LOGO
Verify Passed : EBR2
Verify Passed : ANDROID
Verify Passed : CACHE
Verify Passed : USRDATA
Verify Passed : FAT
Data Verify Done, time used : 00:00:19
Update Mirror PMT
Update Done!
Update RomInfo done
Done!
Elapsed: 00:05:07
Reconnect Power/Cable!5.wait matapos ang flash
6.open ang phone
8.done
credit nalang po sa original na may ari ng files
salamat sa pag view..
