REFERENCE huawie Y5II CUN-U29 shorted NO POWER DONE

tungfo0206

Registered
Joined
Dec 21, 2016
Messages
88
Reaction score
55
Points
1
Location
laguna
SHare ko lang mga boss,
baka sakaling makatulong...

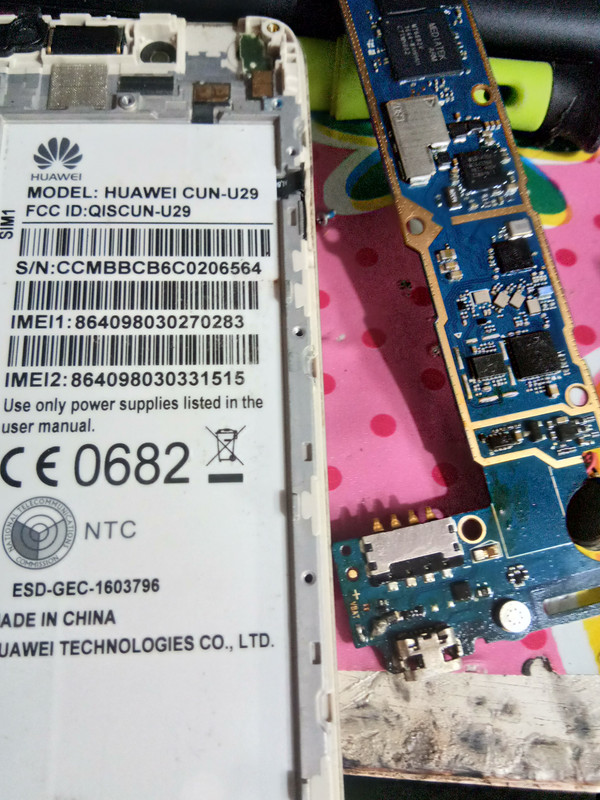

huawie y5II dala ng tumer at
NO POWER
NOT pc detect fix!

ito ginawa ko..

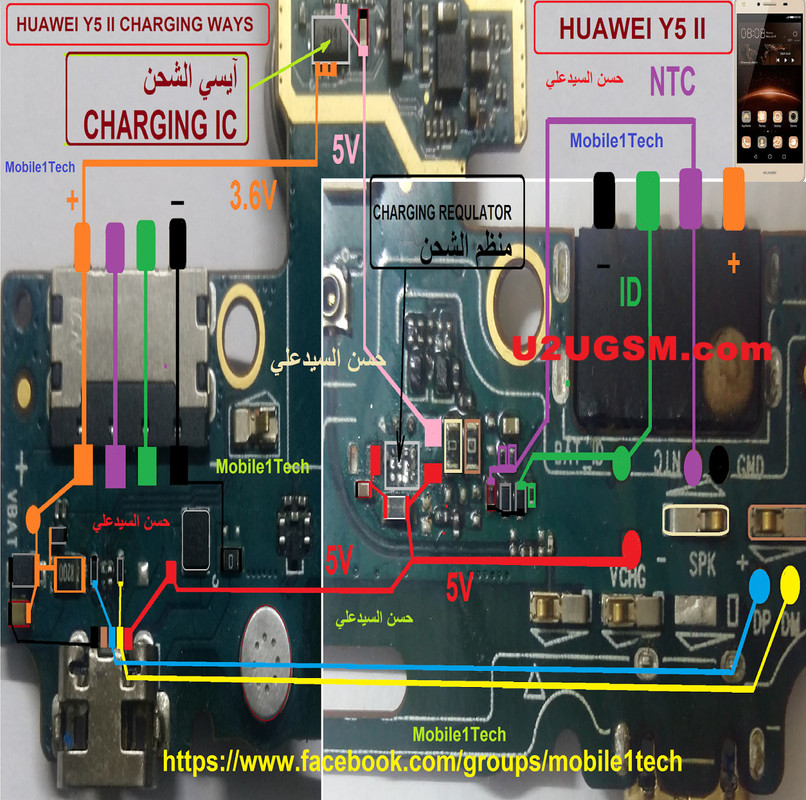

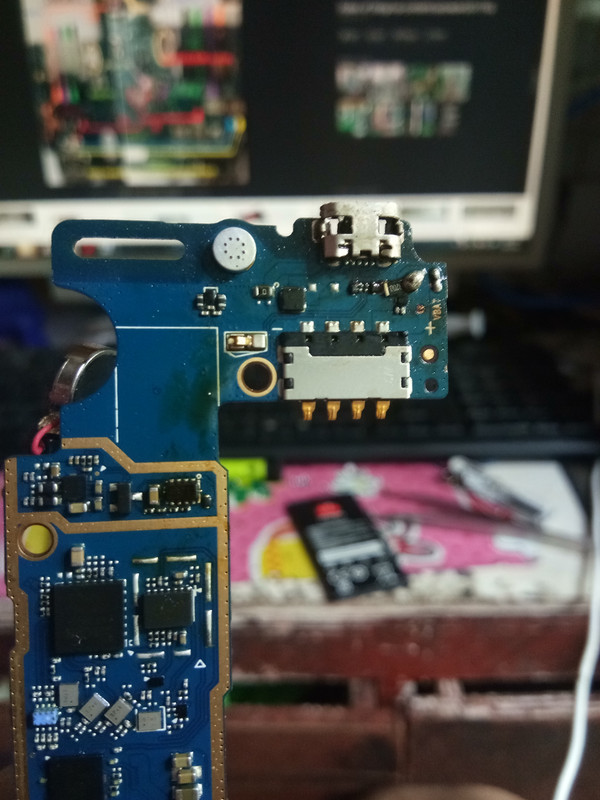

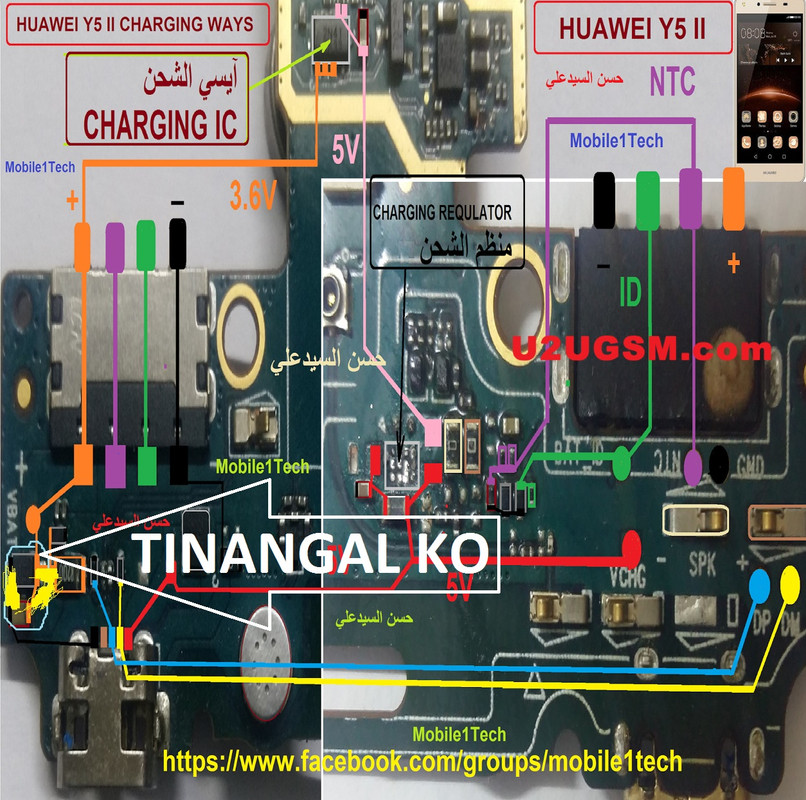

ung dalawang pyesa sa gilid,tinangal ko tas ung ginuhit ko ng yellow,jumper yan.. NEREHEAT ko din charging ic at charging pin

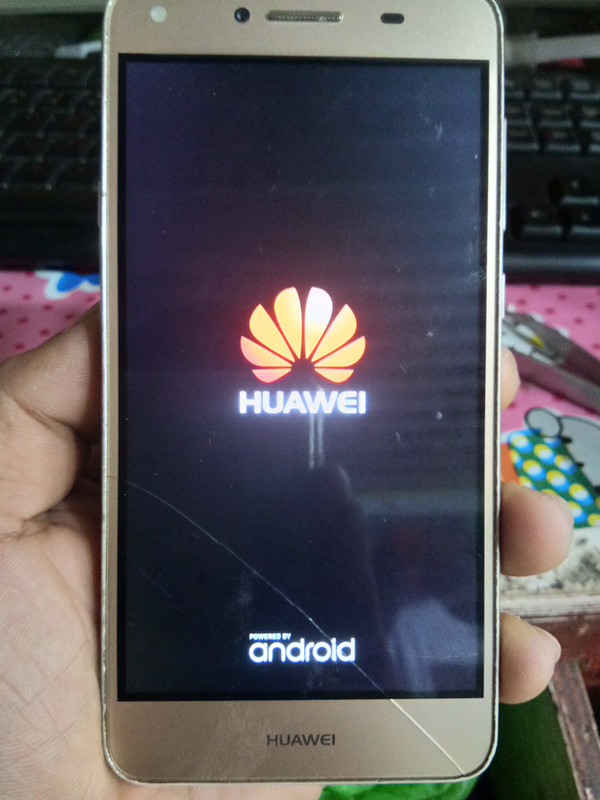

done na sya..pero bago gawin hardware.. TESTER nyo muna para cgurado at pacnxha na f magulo threads ko pero maiitindihan na yan ng certified Tech:D ..pa delete nalang f not allowed ang hardware threads..thanks
