Share ko lang dala ni tumer Myt5 dtv password problem.
Remove By CM2MTK W/Back up flash file

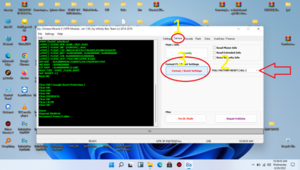

1.Open CM2MTK
2.Click: Settings tab.
3.Select: SP : Auto [2601] [6571..6595] [6732..6797] [81 | 83 | 87xx] NAND | eMMC
4.Click: Service tab.
5.Select: FULL FACTORY RESET (ALL)
6.Click: Format / Reset Settings
No boot key: Connect usb Cable and wait it done

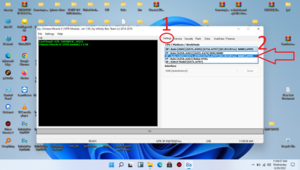

At ito din po ung back up ko
Link: https://drive.google.com/file/d/1vqgRmSvzq2ue2NMs73BytiJ7qTI9zm6s/view?usp=drivesdk
Ito nMn po ung info ng files
Card found : S/N : 1AEDBDC8 , v0151Remove By CM2MTK W/Back up flash file
1.Open CM2MTK
2.Click: Settings tab.
3.Select: SP : Auto [2601] [6571..6595] [6732..6797] [81 | 83 | 87xx] NAND | eMMC
4.Click: Service tab.
5.Select: FULL FACTORY RESET (ALL)
6.Click: Format / Reset Settings
No boot key: Connect usb Cable and wait it done
At ito din po ung back up ko
Link: https://drive.google.com/file/d/1vqgRmSvzq2ue2NMs73BytiJ7qTI9zm6s/view?usp=drivesdk
Ito nMn po ung info ng files
Chinese Miracle II [MTK module] v 1.58
Operation : Format FileSystem [ v1.58 ]
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey
Wait for phone...
Phone found! [ 25 ]
Sync...
Inital Boot Ok!
BB_CPU_PID : 6580
BB_CPU_NME : [MediaTek] MT6580_S00
BB_CPU_EXT : 0xCA00 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with PRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x94
NAND Flash : NOT INSTALLED
eMMC Flash : 8801034E43617264201241084322A41D
Initialize Memory ...
DRAM already initialized by Preloader
DAgent sent , init HW now
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x88 , OEM : 0103
[eMMC] : FLASH_INF : [FORESEE] , draC
[eMMC] : FLASH_CID : 8801034E43617264201241084322A41D
[eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00400000
[eMMC] : FLASH_LEN : 0x00000001D2000000
[eMMC] : FLASH_UCP : 7456 MiB [eMMC 8 GiB]
DEV RID : 0x62BB89DAC218683125E376D4FAFF3707
INT RAM : 0x00020000
EXT RAM : 0x40000000 [1 GiB]
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
Clear FRP ( Google Reset Protection )
Clear Ok!
Clear DIN
Clear Ok!
Clear USERDATA
Clear Ok!
Clear CACHE
Clear Ok!
Done!
Elapsed: 00:00:42
Reconnect Power/Cable!
Operation : Read Flash [ v1.58 ]
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey
Wait for phone...
Device boot not done
Check Drivers
Try again
Boot Error!
Operation Failed
Elapsed: 00:00:28
Reconnect Power/Cable!
Operation : Read Flash [ v1.58 ]
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey
Wait for phone...
Phone found! [ 25 ]
Sync...
Inital Boot Ok!
BB_CPU_PID : 6580
BB_CPU_NME : [MediaTek] MT6580_S00
BB_CPU_EXT : 0xCA00 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with PRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x94
NAND Flash : NOT INSTALLED
eMMC Flash : 8801034E43617264201241084322A41D
Initialize Memory ...
DRAM already initialized by Preloader
DAgent sent , init HW now
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x88 , OEM : 0103
[eMMC] : FLASH_INF : [FORESEE] , draC
[eMMC] : FLASH_CID : 8801034E43617264201241084322A41D
[eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00400000
[eMMC] : FLASH_LEN : 0x00000001D2000000
[eMMC] : FLASH_UCP : 7456 MiB [eMMC 8 GiB]
DEV RID : 0x62BB89DAC218683125E376D4FAFF3707
INT RAM : 0x00020000
EXT RAM : 0x40000000 [1 GiB]
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
Reading Flash Content now ...
xGPT : Normalize settings Ok!
Brand : MyPhone
ProdName : myT5_DTV
ProdModel : myT5 DTV
Device : myT5_DTV
AndroidVer: 7.0
MTKxCPU : MT6580
MTKxPRJ : alps-mp-n0.mp2-V1.23.1_joyasz8321.tb.n_P47
[Read Ok] : preloader_joyasz8321_tb_n.bin
[Read Ok] : items.img
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : logo.bin
[Read Ok] : secro.img
[Read Ok] : system.img
[Read Ok] : cache.img
[Read Ok] : userdata.img
[ScatCFG] : MT6580 / V1.1.2 / joyasz8321_tb_n / EMMC
Android Info saved
HWConfig Info saved
FW Size : 2537 MiB
Scatter saved to : C:\Users\vinasoy\Documents\MT6580__MyPhone__myT5_DTV__myT5_DTV__7.0__alps-mp-n0.mp2-V1.23.1_joyasz8321.tb.n_P47\
All done!
Done!
Elapsed: 00:14:28
Reconnect Power/Cable!
Ito nMn po proof ko hindi kona po nakunan na may pass.
