tools needed
2gig micro mmc
usb
uart cable
z3x
Procedure:
* Download samsung s3 boot card maker http://www.4shared.com/rar/MebExtx9/SAMSUNG_S3_BOOT_CARD_MAKER.html
* Extract it on desktop
* Take a card reader insert memory card into the card reader nd connect it to the pc
* From the extracted folder run Diskdump2.exe
* Select generic storage Device.
Now done yu are succesfully created Dead boot memorycard
Requerments:
* Z3X samsung Box or SPT Box (i used z3x)

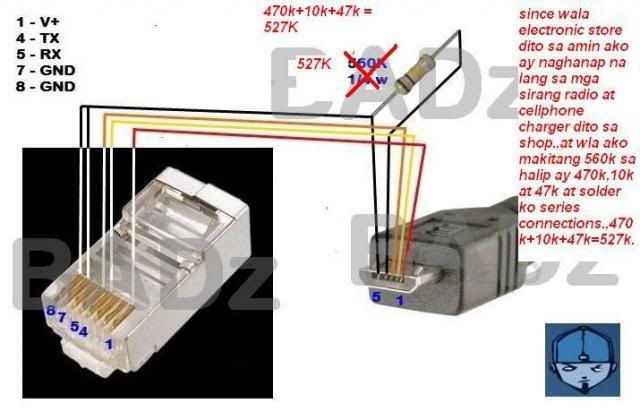

* special UART Cable (300k or 500k uartcable)
* Download teraterm-4.78 From http://www.mediafire.com/download/cuhhw94a664wa27/teraterm-4.78.zip
* Fully charged battery
Dead boot Reapairing procedure
* Download nd extract teraterm-4.78 on desktop
* From extracted folder run ttermpro.exe there select serial port nd change the serial port to z3x serial
port
*After Select The Serial Port Press Ok Button den Go To Setup Click Serial Port Option
Select Baud Rate 115200 Then Press Ok Button
* Now insert the created boot card to the mobile
* Connect the Uart cable via z3x box
* Now Insert the battery nd wait for 5min if the procces didnt start discnnt the mobile close ttermpro agin try it.
After done your phone must be detected by odin then you can flash it using odin dl: http://www.4shared-china.com/zip/OSOApuGm/N7100XXDLJ2_OXA_FACTORY.html?cau2=403tNull&ua=WINDOWS
after finish flash efs failed to mount
flash efs using odin
download efs here: http://www.4shared.com/get/cy2pcs9yce/efstar.html
after flashing efs imei will be 0044
repair imei using z3x
eto yung link na sinundan ko
http://forum.gsmhosting.com/vbb/f77...-boot-solution-imei-null-solution-s3-1788325/
