REFERENCE Oppo M115 Clone Hang, Done.

[sniper_22]

Unit:

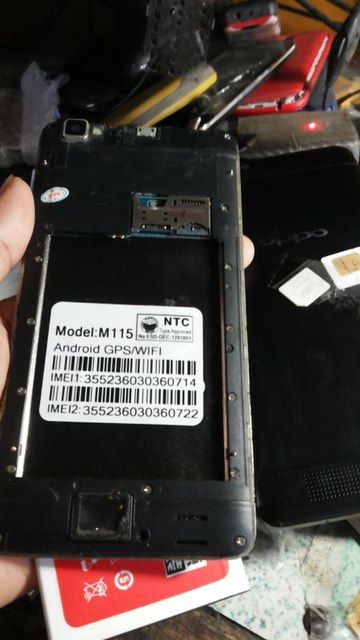

Oppo M115(clone)


Problem:
Hang on OPPO logo

Action taken:
>open NCK_MTK_ANDROID software

>Load Scatter(LENOVO P038D MT6572---MOXXX)

>Firmware Setting ( Check "ANDROID" only)

>Click Write Flash

 [COLOR="White"]Flash files count is :1
 Action : Firmware update.
 Selected 0-By CPU: MT6571_EMMC
 Exe version: NCKDongle AndroidMTK 2.5.6.2
 Scenario: Safe Flash
 Reinsert phone battery.
 Battery must be charged.
 Phone must be off with battery inside.
 Please insert USB cable now...
 Detected : PreLoader USB VCOM Port (COM6)
 Phone detected...Please wait
 Sending DA agent, please wait...
 BaseBand CPU :MT6571_S00
 BaseBand CPU Secure Version : FF
 BaseBand CPU Bootloader Version : 01
----------------------------------------------------
 INT RAM: 128 KB SDRAM
 EXT RAM: 512 MB  DRAM
----------------------------------------------------
 EMMC: (29Gb+4096Mb) HYNIX 0x483447326111
 EMMC FW VERSION: 01:00:00:00:00:00:00:00
 EMMC CID: 90014A48344732 : 000000000000000000
 EMMC UA SIZE: 0xe9000000
 BOOT STYLE: EMMC BOOT
 FULL LENGTH: 0xe9c00000       [3.652 GB]
 Detecting high speed port, wait......
 If driver not installed, install high speed port driver.
 If not need high speed port, disable it.
 After repeat opperation.
 Detecting high speed port, wait......
 Detected : DA USB VCOM Port (COM24)
 Warning, flashing preloader disabled!
 If you change android version, preloader must be flashed.
 Flash EMMC Algo Start.
 Starting flash.
 Download firmware to flash now...
 Wait untill phone will start charging.
 All done.[/COLOR]

>DONE.

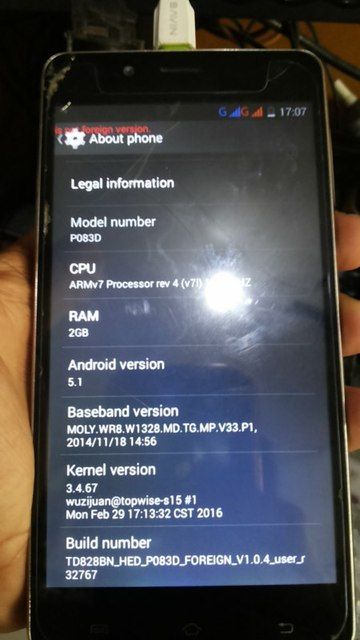

May nakalagay nga lang sa sa upper left side na "is not foreign version'. Pero pwede na rin ok naman

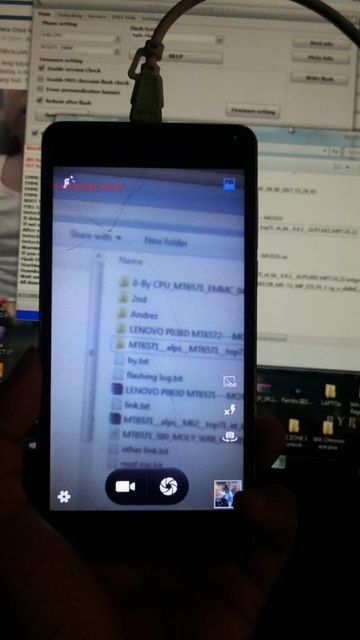

wifi, cam, signal..

Salamat sa inyo mga boss:
migs at
cliveraine05

para sa gustong sumubok sa Firmware, bisitahin lang po dito..
http://www.antgsm.com/showthread.php?p=560949#post560949



[mrjames123]

sir pa pm nang password
