RELME 5I DEAD FULL SHORT DONE IN ONE MOVE


MY ROCEDURES

FIRST STEP- TRY CHARGE IN SCHEMATIC CHARGER 0 REDING
STEP 2- DISSASSEMBLED THE UNIT CHECK CHARGING PORT TO MAINBOARD GOOD LINE
STEP 3- TESTER THE BATT TERMINAL BOOM FULL SHORT
STEP 4- OPEN THE THERMAL CAM TO CHECK THE SHORT PROBLEM BOOM



STEP 5- REMOVE THE RESISTOR ONLY NO NEED CHANGE NGA BOSS

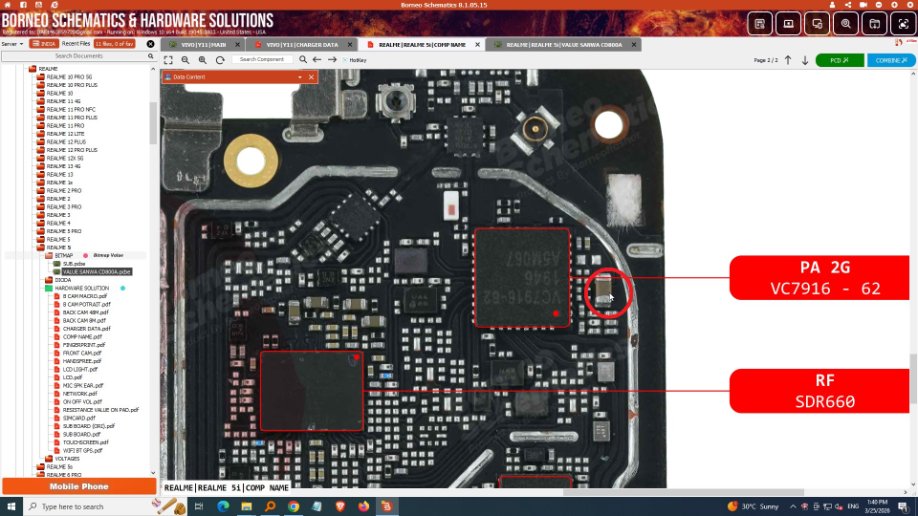

DONE MY OWN PROOF IMAGE

​



[FredzyNoy]

thanks..btw,capacitor yan..vph_pwr circuit



[larstech30]

thanks..btw,capacitor yan..vph_pwr circuir
View attachment 40738

thank you boss sa pag guide wala pa kc tayong boneo schematics para sa name all component about mother board of cellphone
