REFERENCE Toshiba satellate C50 no display done via bios flashing..

[jowell]

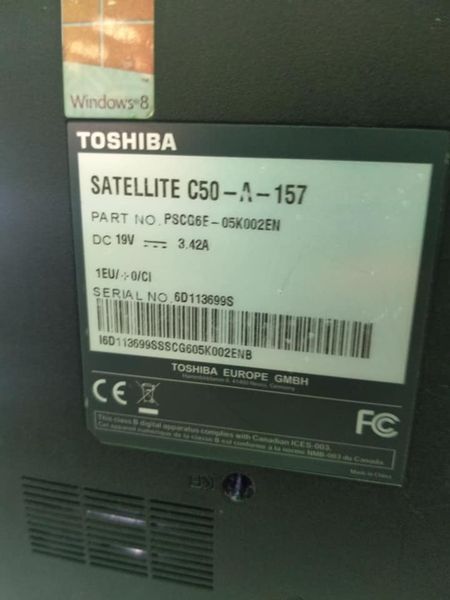

Toshiba satellate C50 no display

action taken
try in monitor no display rin
try replace ram same status
check voltage kng missing supply
ram supply #22 good 1.5v cause of no display rin kc pag missing ang supply nya
ang ram pala nya is DDR3L kaya 1.5v ang normal volt sa DDR2 is 2.5v to 3.3v
nxt is bios ic good din kc my 3v din sya

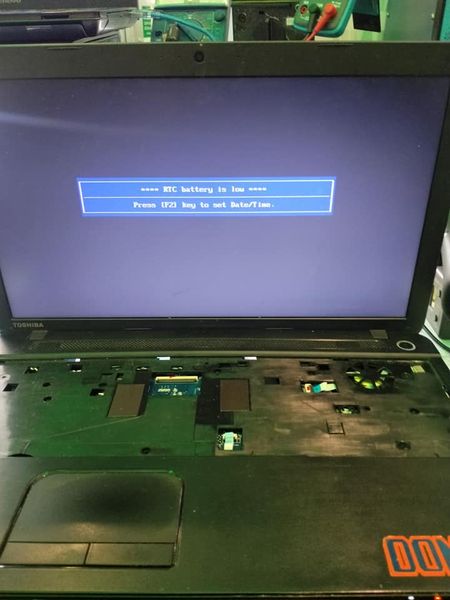

last is flashing bios done...
ito ung ginamit kng binfiles... https://www.antgsm.com/forum/thread...920-sjtnv-it8528e-bios-ec.218079/#post-900555
note: bago mag flash ng bios backup muna ung dati nya for incase di bios ang problema...

TOOLS
loptop or pc

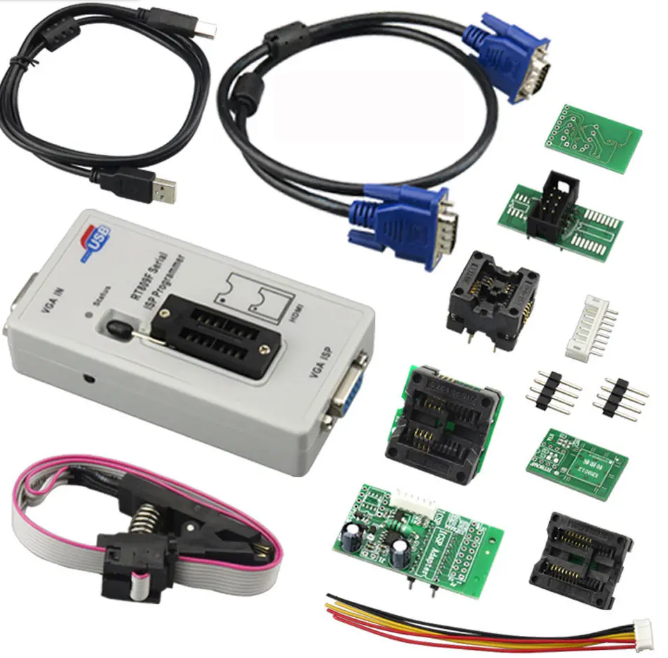

rt809f programmer

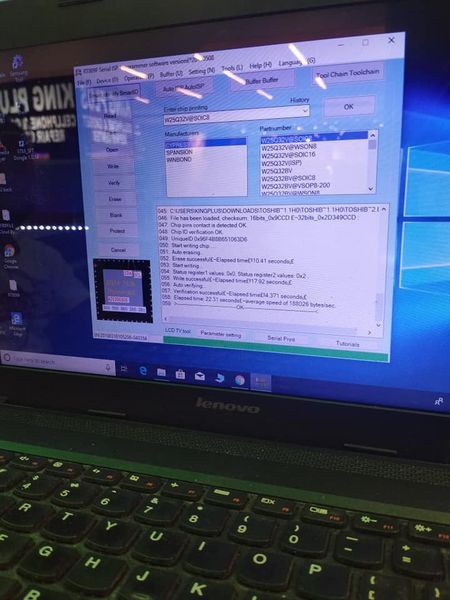

rt809f programmer software download
https://drive.google.com/file/d/15DCYjCsbb8hC5aCFNgm4fdvoBslpnsyR/view




sana makatulong po sa newbie gaya ko,,,,,,,,,,,,,,thnx antgsm



[mr.yahbhang]

Salamat sa bagong kaalaman master!



[Kapitan_hitech]

Hello sir ask ko lang san po kayu nakabili ng SPI Programer thanks..



[jowell]

Hello sir ask ko lang san po kayu nakabili ng SPI Programer thanks..

sa shoppee or lazada master @Archers
